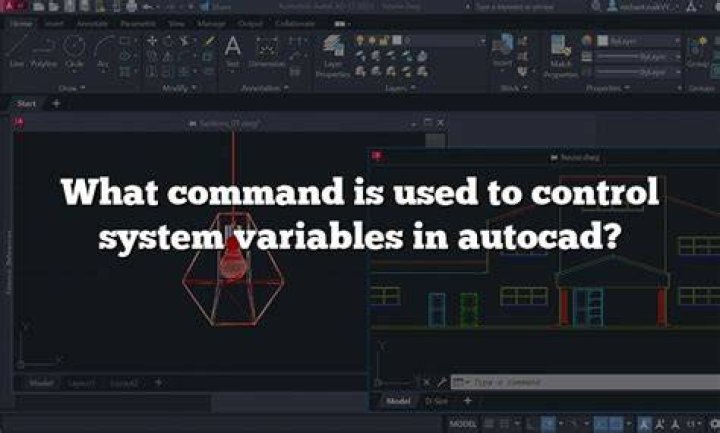

How do I change system variables in AutoCAD?

You just type in the name of the variable you want to change and enter the new value. Most of AutoCAD's system variables are changeable. This allows for quick customization as well as easier programming.

How do you use variables in AutoCAD?

In the Command prompt text box, type the full system variable name and press Enter or the Spacebar. If automatic command completion is turned on, start typing the system variable. Press the Tab key to switch to the system variable display. From the displayed list, select the variable you want to use and press Enter.

What are the commands that control the basic function of AutoCAD?

Basic AutoCAD Function Keys

• F1. This function key opens the AutoCAD Help window. ...
• F2. This key opens a pop-up screen showing the command line on the bottom. ...
• F3. This command automatically activates the O snap feature of AutoCAD. ...
• F4. This key will open the O snap feature while working in 3 dimensional. ...
• F5. ...
• F6. ...
• F7. ...
• F8.

What are the types of commands in AutoCAD?

50 AutoCAD Commands You Should Know

• APPLOAD. Defines which applications to load when starting / opening AutoCAD. ...
• AREA. Calculates the area and perimeter of a defined object or a surface that you select vertex by vertex, according to the metric units defined in settings.
• BACKGROUND. ...
• BMPOUT. ...
• BOX. ...
• BURST. ...
• CHSPACE. ...
• CLOSEALL.

AutoCAD 2016 Review - System Variable Monitor

How do I view system variables in AutoCAD?

Press the Tab key to switch to the system variable list. You can set whether system variables are mixed with commands or not displayed at all in the Input Search Options dialog box. The SETVAR command lists all the system variables in the text window or the extended prompt history.

Why do system variables change in AutoCAD?

Causes: One or more of the system variables that are monitored by the System Variable Monitor has changed.

What is the function of Hpgaptol system variable in AutoCAD?

Specifies the maximum gaps between a set of objects that almost enclose an area to still be treated as a closed hatch boundary.

What is Donut command in AutoCAD?

A donut consists of two arc polylines that are joined end-to-end to create a circular shape. The width of the polylines is determined by the specified inside and outside diameters. If you specify an inside diameter of 0, the donut is a filled circle. The following prompts are displayed. Inside Diameter.

What is Polygon command in AutoCAD?

The polygon command is used to create polygons in AutoCAD. We need to specify the number of sides to create a polygon. The maximum number of lines available to create a polygon is 1024. The shortcut command to create a polygon is 'pol'.

What command do you use to obtain a points exact coordinate value in AutoCAD?

To Display the Coordinates of a Point

What is the meaning of UCS AutoCAD )?

UCS. A UCS is a “User Coordinate System” which defines the angle of the XY plane you are working in. Defining a User Coordinate System rotates the XY plane, making it more convenient for working to other orientations. In the example, the site is not orthogonal and the site grid is rotated to match the site orientation.

What is system variable monitor AutoCAD?

The System Variable Monitor is enabled by default and has several system variables in the list of ones to monitor. Of course, you can edit the list of variables to monitor, the preferred values, and the notification method. At the Command prompt, enter SYSVARMONITOR.

What is Whipthread in AutoCAD?

WHIPTHREAD. This variable specifies how AutoCAD will use additional processors on the machine. If there is only a single processor then this variable will not have any effect. The default value of WHIPTHREAD system variable is 1 but you can change it to other values as well.

What is Regenmode in AutoCAD?

Toggles on and off automatic regeneration for the current drawing. When the value is set to on (1), the drawing automatically regenerates for operations such as zooming in and working in progeCAD Explorer. When the value is set to off (0), the drawing will not automatically regenerate.

Which variable controls the display of the navigation bar in AutoCAD?

The navigation bar is normally on by default and is located to the right-hand side of the drawing area. Which variable controls the display of the navigation bar, and to what value does it need to be set for the navigation bar to display on the screen? The NAVBARDISPLAY value should be set to 0.

How many AutoCAD commands are there?

You can just type the command, and the function window appears. There are over 150 unique shortcuts and commands in AutoCAD, and it can quickly get overwhelming just seeing the sheer number of them.

Where are the five most useful commands in AutoCAD?

The Five Most Useful AutoCAD Commands

• Line: Enter line or l to the command prompt. AutoCAD will ask for first point. ...
• Circle: Enter circle or c to the AutoCAD command prompt. ...
• Rectangle: Enter rectangle or rec to the command prompt. ...
• Trim: Enter trim or tr to AutoCAD command prompt. ...
• Hatch: Enter hatch to command prompt.

What is modify command in AutoCAD?

AutoCAD provides a whole range of modify tools such as Move, Copy, Rotate and Mirror. As you can see, the command names are easily understandable. However, the way these commands work is not always obvious. This tutorial is designed to show you how all of the Modify commands work.

What are the different types of coordinate systems in AutoCAD?

There are three types of coordinate display: static, dynamic, and distance and angle.

• Static display. Updates only when you specify a point.
• Dynamic display. Updates as you move the cursor.
• Distance and angle display. Updates the relative distance (distance<angle) as you move the cursor.

How do I select coordinates in AutoCAD?

AutoCAD is even easier for quick spot measurements – the command “ID” gives you the X, Y, and Z coordinates based on a point you specify. Simply type “ID” in the command window, hit space/enter, and choose the point you want (snaps are obviously useful here). The result is shown in the command window.

What are the 5 coordinate systems?

Common coordinate systems

• Number line.
• Cartesian coordinate system.
• Polar coordinate system.
• Cylindrical and spherical coordinate systems.
• Homogeneous coordinate system.
• Other commonly used systems.

What is Rectangle command in AutoCAD?

The rectangle command is used to create rectangles in our drawing. There are two methods to draw a rectangle. In the first method, we can create rectangles randomly by specifying the points. In the second method, we can create rectangles by specifying the value (length and width).
