Do plumbing pipes need to be grounded?

The NEC requires that water pipes be bonded to ground, even if these metal pipes are not used as part of the grounding system.

How do you tell if a pipe is grounded?

As long as there is water in your plumbing system, there is no way to electrically determine if your electrical system is bonded to your plumbing, since the water inside the pipes (even if PEX) will conduct electricity such that any two points tested between electrical ground and plumbing will be close enough to zero ...

Should copper pipes be grounded?

Metallic water piping systems inside the building are required to be bonded to the grounding system. You can no longer use it as the sole grounding electrode since the water utility can replace the underground portion with plastic at any time.

Why is there a ground wire on my water pipe?

The main purpose of this bond is to make sure that the metal water pipe is not affected by the service grounded conductor. If the metal water pipe becomes energized, there is a path back to the service for electrical current flow.

Grounding on Plumbing System

Where can I ground water pipes?

Interior metal water piping located 10 feet from the point of entrance to the building may be used as a grounding electrode conductor. The GEC connection must be within the first 5 feet and the metal water pipe must be electrically continuous with a metal underground water pipe electrode.

Do metal pipes need to be grounded?

Section 250.50 of the National Electrical Code (NEC) requires that a metal underground water pipe in direct contact with the earth for at least 10 feet or more be used as one of the grounding electrodes for the electrical service to the building.

Why are cold water pipes grounded?

Plumbing System Grounding

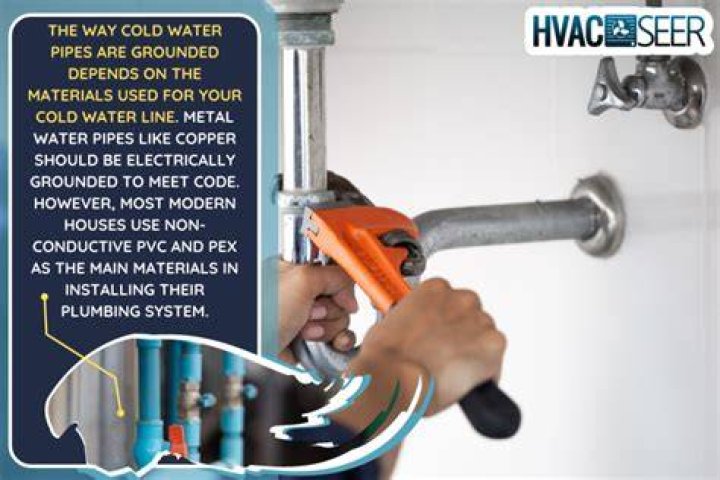

Metal pipes are required by code to be electrically grounded, and this is normally done by grounding the cold water inlet pipe to the home. The water heater creates a break between the cold water pipes and the hot water pipes in the home.

Can you ground a PVC pipe?

Plastic PVC pipe is an insulator and cannot be grounded.

How do I know if my water pipe is bonded?

To find out if your electrician has carried out earth and bonding correctly, take a look at your main gas meter. You should see a green and yellow 10mm Cable attached to it. (its about the thickness of a biro pen). In addition, also take a look at your main water stopcock, you should see a similar connection.

How do you check if my house is properly grounded?

The simplest way to know is to look at the outlets scattered throughout your home, including in the garage, basement, and attic. Do they have two holes or three? The ones with three are likely grounded. When a grounding problem is present, people can experience a slight shock when they touch a metal object in the home.

How do you test if you are grounded?

If you want to check if you have proper earthing, try plugging the wires from a lightbulb base into the ports of an outlet to see if it lights up. If you want to test more accurately, use a multimeter to take your readings instead.

Does PEX water lines need to be grounded?

If your home has a PEX or plastic water supply line, you need to ground the system using grounding rods on the exterior of your home. Houses with PEX water lines must be grounded with metal rods.

Do you need to bond water pipe?

Since Section 250.104(A) requires all water-piping systems to be bonded back to the service, and hot or cold water lines are not specifically mentioned, both hot and cold water lines must be bonded and connected back to the building service.

Can you ground to water line?

Popejoy, a licensed electrical contractor in Sacramento, California, replies: To answer your second question first, no, you can't grab a ground from a cold-water pipe.

Why are copper pipes earthed?

If the pipe is earthed, the earth leakage will trip as soon as it happens. Without earth, the whole length of the pipe would be at 240V; so not great for turning your taps on. Many other examples of where it could be useful, but nowadays there is so much plastic used in plumbing this is not a required practice.

What happens if my house isn't grounded?

If there is no ground connection or a poor ground connection in the house, electricity could travel through your body to the ground. In this case you would end up becoming the ground connection – a condition that can lead to serious injury or also death.

Do outlets need to be grounded?

The National Electrical Code requires that all receptacles installed in all 15- and 20-amp, 120-volt circuits be grounded. If your house wiring predates the adoption of this requirement, you don't have to replace your ungrounded receptacles with grounded ones.

How do you do grounding at home?

When you're inside, grounding yourself requires a bit more effort and in most cases, equipment. Use a grounding sheet or socks while you sleep. Use a grounding mat in your home office chair. This equipment has been thought to help ground you throughout the day.

How can I detect earth leakage in my home?

How to Discover an Electrical Leakage at Home

Do old houses have ground wires?

No Ground. Being a two-wire system, knob-and-tube wiring does not have a ground system for safety. This doesn't necessarily make the wiring unsafe to use, but it does rule out an important safety feature found on modern wiring systems.

How much does it cost to ground a house?

Three-Prong Outlets

Replacing outdated receptacles is fairly straightforward, but your electrician or handyman may need to run a new ground wire from the outlet to the breaker. All things considered, this can cost anywhere between $100 and $300.

Where is my house ground Rod?

The Ground Rod is usually located very close to your main electrical service panel. The ground rod is often made of copper, or copper coated steel, approximately ½” in diameter or larger and 8–10 feet in length. It must be electrically tied to your main service panel to provide an approved ground connection.
